Technical Parameters of OGM Gear Flowmeter
Model
|
OGM-25
|
OGM-40
|
OGM-50
|
Metric Diameter
|
1"
|
1.5"
|
2"
|
Min Flow L/min
|
12
|
25
|
30
|
Max Flow L/min
|
120
|
250
|
300
|
Accuracy
|
±0.5%
|
±0.5%
|
±0.5%
|
Repeatibility
|
±0.3%
|
±0.3%
|
±0.3%
|
Max viscosity
|
1000CPS
|
1000CPS
|
1000CPS
|
Max working pressure
|
3.4MPa
|
1.8MPa
|
1.8MPa
|
Single Count
|
0.00-9999.9
|
0.00-9999.9
|
0.00-9999.9
|
Total Count
|
0.00-999999.9
|
0.00-999999.9
|
0.00-999999.9
|
Key Operation Instruction

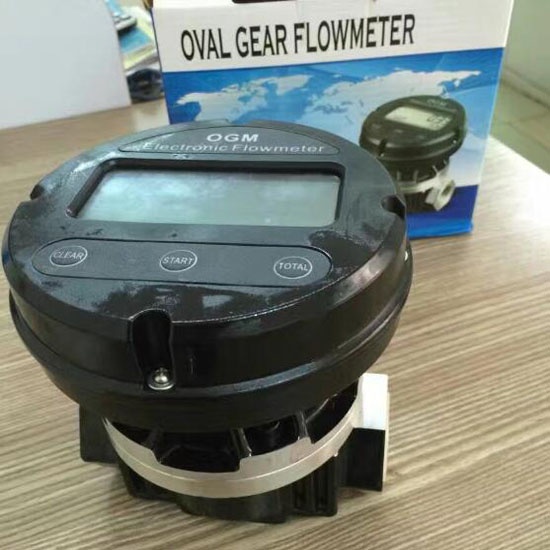

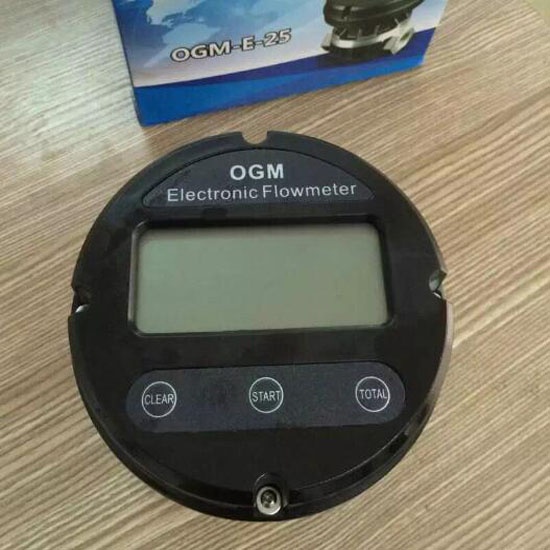

1.. On the left CLEAN key, starting and cleared, in the middle of the START key, set up, the right for the TOTAL key,
the total amount of display and class total display
2, start: press ON/CLEAN key to boot, or the sensor has a measurement pulse, can be switched on. The machine
automatically shut down 4-5 minutes without any operation..
3 view total: in the normal display state press TOTAL key, the screen display TOTAL, the following row of figures is
the total cumulative. 10 seconds after the automatic return to normal display.
4 when the data is clear, in the normal state of the display, press ON/CLEAN to clear when the data.
5 clear class total: in the normal display state press TOTAL button, when the screen display TOTAL, the following
row shows the figure is the total cumulative, press TOTAL key again, showing a total flash, then press ON/CLEAN
button to clear the value, return to normal after 3 seconds.
6. Adjustment coefficient in the normal state, not counting pulse, waiting for 5 seconds, press the start button to
keep 5 seconds, entering coefficient adjustment mode, this row display has some coefficient, a flashing. Press
ON/CLEAN button to 'Add', press TOTAL key to 'minus', according to the START shift, after modification, long
press START wait for 1 seconds, save the revised value, and return to normal display. If you do not operate,
after 30 seconds will automatically return to normal display. The modification is based on the actual measured
value and display value, the actual value divided by the display value, and then multiplied by the existing
coefficient is to modify the value of the. Simple generalization: when the system is large, the relative oil will be
reduced. System to minor. Oil will increase.
